【PCT】HDMI2.0 60M Extender Cascade Connection(HE120T/R)
加入比較
產品應用
Introduction
HE606T/R is the 4K60Hz 60M HDMI extender uses one single cat-5E or cat-6(recommended) cable instead of HDMI cable,
you can extend the 4K signal to 60 meters.
The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.
產品特色

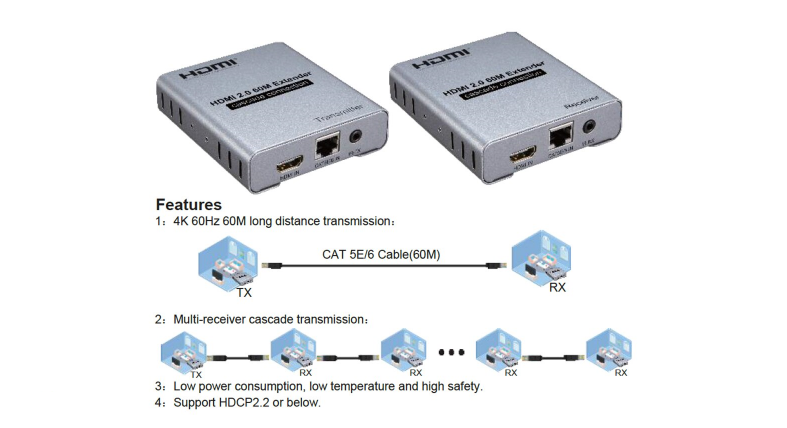

Features:1. Extend your HDMI Audio Video Signals. 60M long distance transmission.

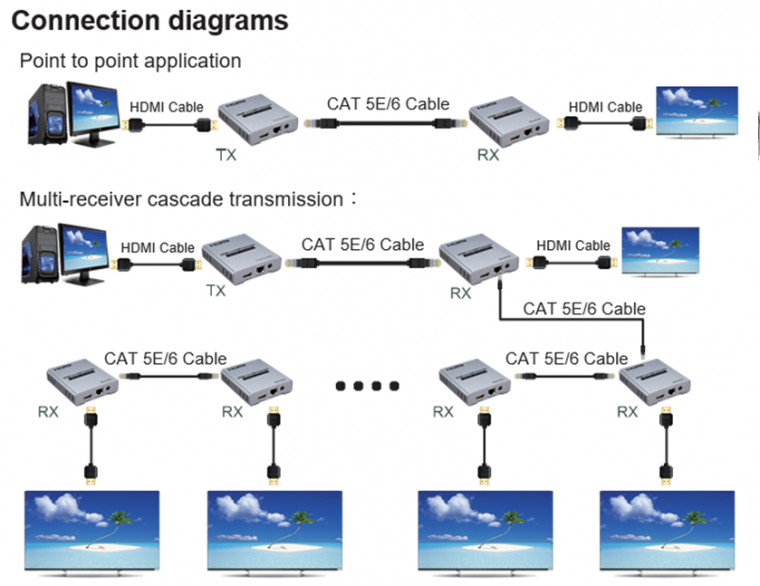

2. Plug and play, no software required. Multi-receive cascading transmission.
3. Low power consumption, low temperature and high safety.
4. Support 4K@60HZ HDMI2.2 or below.
產品規格
| 型號 | HE606T/R |
|---|---|
| 功能 | 4K60Hz 60M HDMI Extender over Cat5e6 |
| 輸入埠 | HDMIX1 / RJ45X1 /IR |
| 輸出埠 | HDMIX1 / RJ45X1 /IR |
| 頻寬 | 600MHz |
| 傳輸速率 | 5Gbps |
| 傳輸距離 | Length of CAT-5E/CAT-6 cable up to 60 meters |
| 輸出端 | 10m AWG26 HDMI standard cable |
| 作業溫度 | -15 to +55℃ |
| 濕度 | 5% to 90%RH (No Condensation) |
| 電源供應 | DC5V / 1A |
| 尺寸 (mm) | 94x84x24mm |
| 外殼材質 | Aluminum housing |
產品包裝
產品包裝內容：
- 1* HE606TX Extender
- 1* HE606RX Extender
- 1* IR-RX cable
- 1* IR-TX cable
- 2* 5V/1A Selectable Power adapter
- 1* Manual
我們所提供為全新產品，並提供以下保證：
- 保固期限：此商品屬『耗材類』，我們提供七天內新品瑕疵有限條件更換服務
- 保固範圍：產品故障
