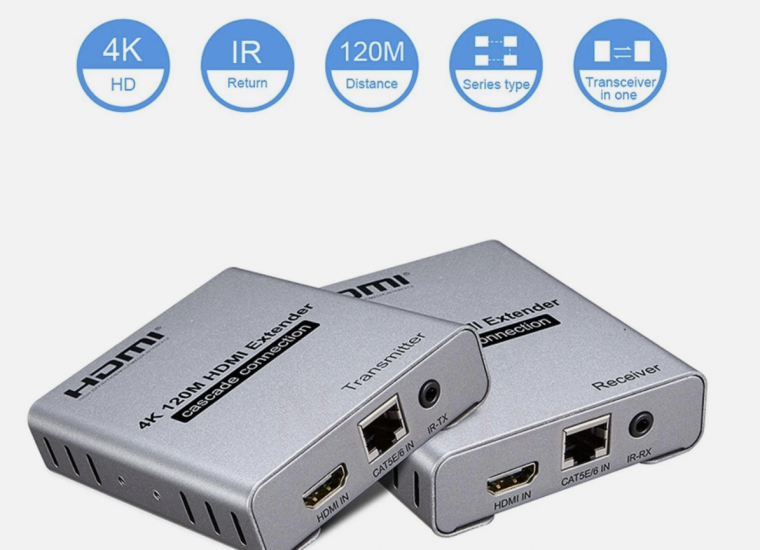

【PCT】 4K 120M HDMI Extender cascade connection(HE120T/R)
加入比較
產品應用
Introduction
HE120T/R is the 4K 120M HDMI extender uses one single cat-5E or cat-6(recommended) cable instead of HDMI cable,
you can extend the 4K signal to 120 meters.
The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.
產品特色
Features:1. Extend your HDMI Audio Video Signals. 120M long distance transmission.

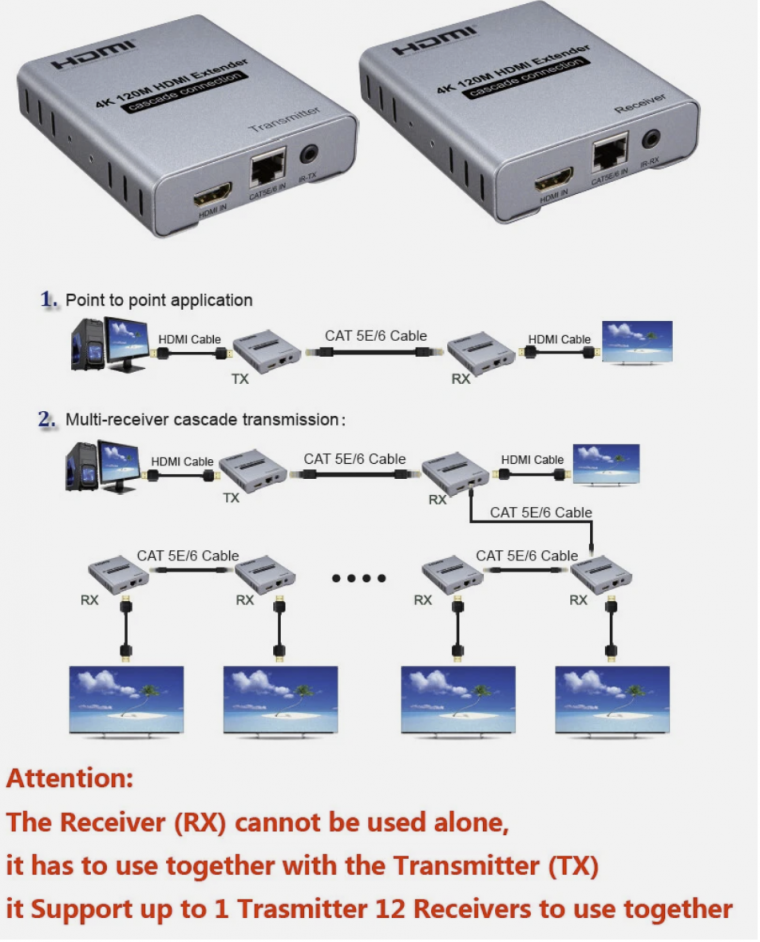

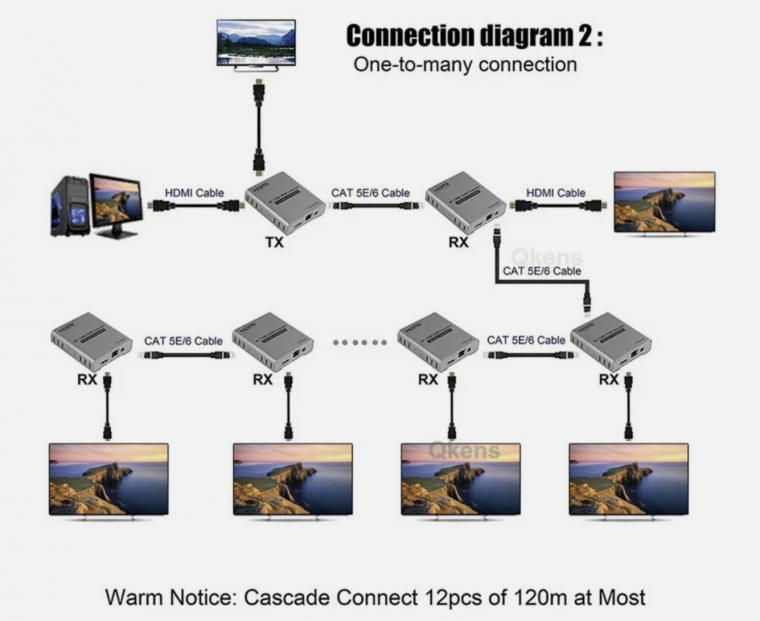

2. Plug and play, no software required. Multi-receive cascading transmission.
3. Low power consumption, low temperature and high safety.
4. Support 4K@30HZ HDMI1.4 or below.
5. HDMI extender over IP is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system.
產品規格
| 型號 | HE120T/R |
|---|---|
| 功能 | 4K 120M HDMI Extender over Cat5e6 |
| 輸入埠 | USB Type-C x 1(Female) / USB-C(PD)x 1 / RJ45 x 1 |
| 輸出埠 | 15M AWG26 HDMI standard cable |
| 傳輸速率 | 5Gbps |
| 最高解析度 | HDMI:4K@30Hz |
| 傳輸距離 | 120m |
| 輸出端 | 15M AWG26 HDMI standard cable |
| 電源供應 | DC5V / 1A |
| 尺寸 (mm) | 94x84x24mm |
| 外殼材質 | Aluminum housing(鋁合金外殼+ABS塑料) |
產品包裝
產品包裝內容：
- 1* HE120TX Extender
- 1* HE120RX Extender
- 1* IR-RX cable
- 1* IR-TX cable
- 2* 5V/1A Selectable Power adapter
- 1* Manual
我們所提供為全新產品，並提供以下保證：
- 保固期限：此商品屬『耗材類』，我們提供七天內新品瑕疵有限條件更換服務
- 保固範圍：產品故障
