【PCT】 USB -C 9 in 1 Docking Station(PK109SH)
  • PK109SH-2
加入比較
產品應用
產品特色
產品規格
產品包裝
產品應用

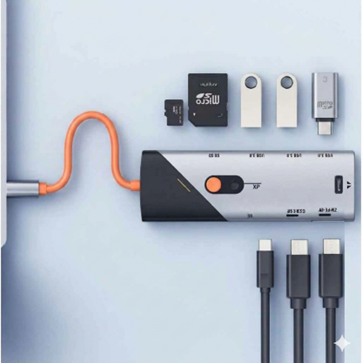

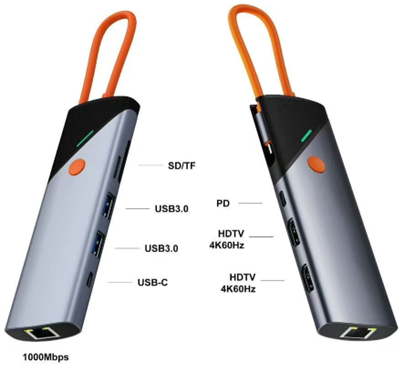

PK109SH 9 in 1 Professional Connectivity Hub Adds support for DP&HDMI, Ethernet, 2×USB 3.0,  1×USB-C, SD and TF card reader and 90W PD charging to your single USB-C port, turning your device into a full-fledged workstation.
DUAL 4K 60Hz Ultra HD HDMI Output Provides 60Hz smooth image transmission at 4K resolution to a monitor, TV or projection.
It offers superior quality for presentations, movie watching and multi-screen use.
Seamless Internet with 1000Mbps Gigabit Ethernet A high-speed RJ45 wired connection eliminates WiFi fluctuations, making online meetings, gaming, and large file downloads faster and more stable.

產品特色
Key Feature:
•Screen On/Off: Press the button to lock the screen casting and protect your privacy..
•Gigabit Ethernet provides stable internet connection.
•Supports a wide range of TF and SD cards, compatibility SDXC.(Only one of the two interfaces can be selected)
•Supports Dual HDMI resolution up to 4K@60Hz.
•Add 2*USB3.0 port, supports data transfer rates up to 5Gbps.
•Add 1*USB-c(USB2.0) port, supports data transfer rates up to 480Mbps.
•USB-C PD3.0 90W charging ability.
產品規格
型號 PK109SH
功能 USB-C to USB3.0+ SD + TF + Dual HDMI + RJ45 +USB-A+ USB-C(DATA)+USB-C(PD)
輸入埠 USB Type-C (Male CABLE) + USB-C(PD)+RJ45
輸出埠 HDMI x 2 /USB-C(USB2.0) X1 /USB3.0 A X2+ TF or SD X1
乙太網路速率 10/100/1000Mbps
傳輸速率 5Gbps
最高解析度 DUAL HDMI:4K@60Hz
電源供應 USB PD3.0，最高 100W
尺寸 (mm) 136.5 x 38.5 x 9.8mm
外殼材質 Aluminum housing+ABS(鋁合金外殼+ABS塑料)
產品包裝

產品包裝內容：

  • PK109SH x 1

我們所提供為全新產品，並提供以下保證：

  • 保固期限：此商品屬『耗材類』，我們提供七天內新品瑕疵有限條件更換服務
  • 保固範圍：產品故障
