2 Port Dual USB-C (DP Alt-Mode) KVM(KD204)
  • KD204-5
加入比較
產品應用
產品特色
產品規格
產品包裝

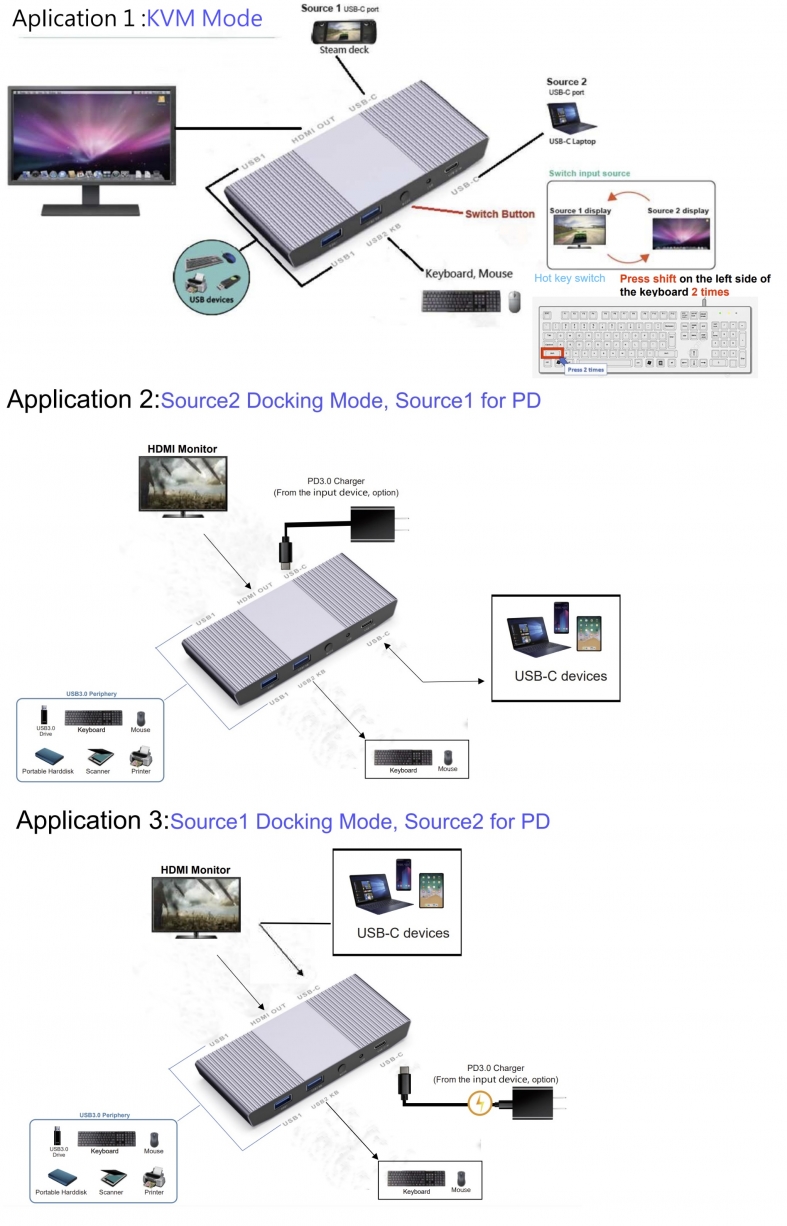

產品應用

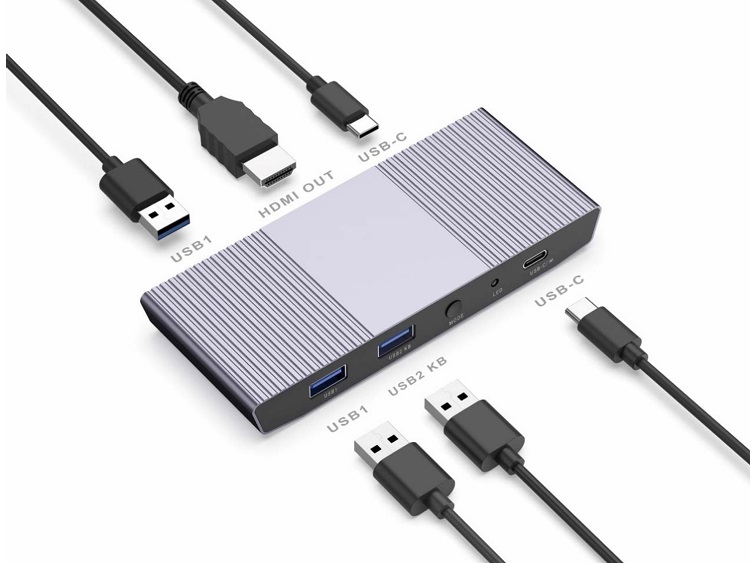

PCT KD204 is the compact Dual USB-C (DP Alt-Mode) KVM with a 4K60 HDMI output. It also supports 3 USB-A 3.2 Gen1 ports for some USB peripherals,
one of USB Port is used for Keyboard hot-key feature to switch USB-C (DP Alt-Mode) devices quickly. The USB-C ports also support PD charging capability.
This aluminum extrusion design looks stylish and has heat dissipation function. it's easy to take it along with you anywhere you go.
The Centron KD204 is very slim and light, this KVM is perfect for the home, office or anywhere in between. Great for mobile workers or those in hoteling or hot-desking environments.

產品特色
  • Dual USB-C DP Alt-Mode input
  • Supports 4k@60 HDMI2.0 Output
  • With 3 USB-A 3.2 Gen1 ports ( one is for KB hot-key. )
  • Easily switch USB-C device by a physical Front Push button or keyboard hot key => (Press shift on the left side of the keyboard 2 times)
  • Powerful PD Pass-Through Charging (up to 60W)
  • Plug and Play Simplicity – with no need for additional software, this adapter easily attaches to your USB-C devices to help you connect to a HDMI Monitor, more peripherals.
產品規格
型號 KD204
功能 USB-C (DP, Alt-Mode) x2 to HDMI 2.0 (4K@60Hz )+USB-Ax3(5Gbps)
輸入埠 USB Type-C (Male) x 1/ USB-C(PD) x 1
輸出埠 HDMI x 1 / USB-A x 2 / USB-C(Data) x 1
長度 HDMI 2M
傳輸速率 10Gbps
最高解析度 4K@60Hz
電源供應 PD3.0, Max 100W
尺寸 (mm) 30(L)x56(W)x17(H)
外殼材質 •Aluminum housing+ABS(鋁合金外殼+ABS塑料)Space Grey
產品包裝

產品包裝內容：

  • KD204 Device x 1
  • Quick start guide  x 1

我們所提供為全新產品，並提供以下保證：

  • 保固期限：此商品屬『耗材類』，我們提供七天內新品瑕疵有限條件更換服務
  • 保固範圍：產品故障
