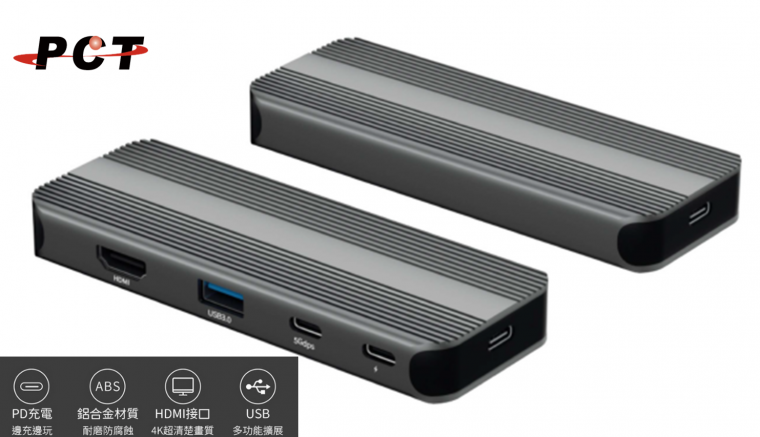

【PCT】USB-C 5 in 1 Docking/ OUT-C Full Function Extender(UDC105)
  • UDC105-2
加入比較
產品應用
產品特色
產品規格
產品包裝
產品應用

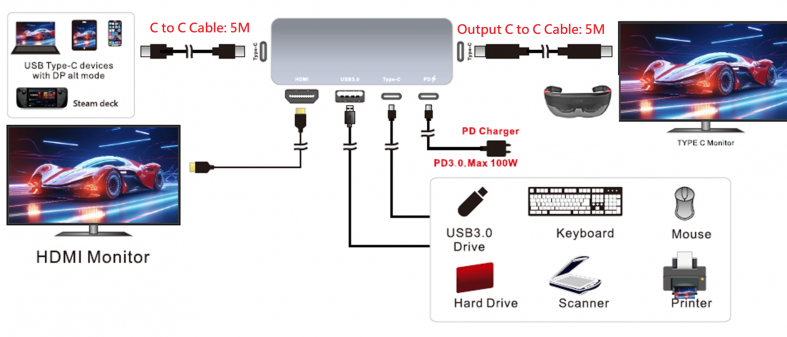

The UDC105 is a compact and portable Type-C hub that connects to HDMI  & OUT-C  Easily add Dual MST, or Single monitors up to dual 4K60Hz display, extend your display area and maximize product
Whether for meetings, office use, or home gaming and multimedia, it easily connects to projectors via the HDMI interface.
UDC105  supports OUT-C Full Function Extender(Display Max 4K@60Hz/USB2.0/3.0)
UDC105  supports USB 3.0 & TYPE_C portable hard drives, keyboards, mouse, and other devices.
UDC105 Can simultaneously connect a PD charger for charging while playing.

產品特色
•Type C x1 (Connect to host)
•TYPE C Full Function (Display Max 4K@60Hz/10Gbps/USB2.0/3.0/PD)
              *C to C AOC cable/15M
              *C to C cable/5M
•HDMI(Max4K@60Hz)
•Type-C 3.1(Max 5Gbps Data transmission)
•USB-A 3.0 (Max 5Gbps Data transmission)
產品規格
型號 UDC105
功能 Type-C 5 Port Docking/ One Out Type C Full Function Extender Port
輸入埠 USB Type-C (Female))+ USB-C(PD)
輸出埠 HDMIx1 / USB-C Full Function 4K@60Hz/ USB3.0x1/USB C(Data)x1
傳輸速率 5Gbps
最高解析度 4K/60HZ
電源供應 PD3.0, Max 100W
尺寸 (mm) 123x45.5x15mm
外殼材質 •Aluminum housing+ABS(鋁合金外殼+ABS塑料)
產品包裝

產品包裝內容：

  • UDC105本體 x 1

我們所提供為全新產品，並提供以下保證：

  • 保固期限：此商品屬『耗材類』，我們提供七天內新品瑕疵有限條件更換服務
  • 保固範圍：產品故障
